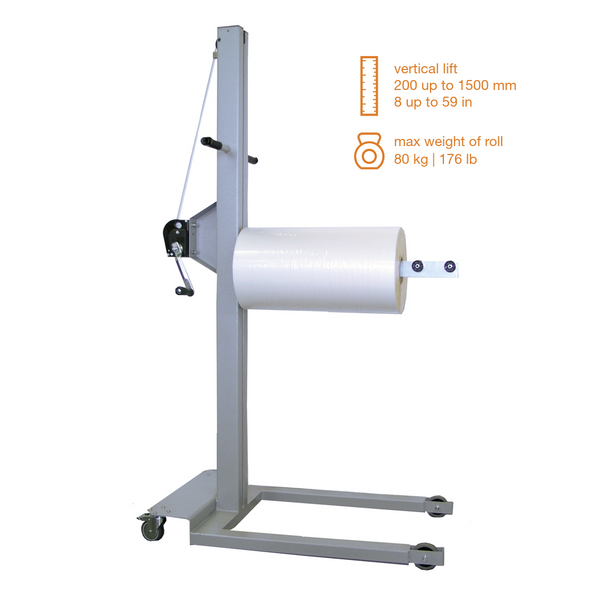

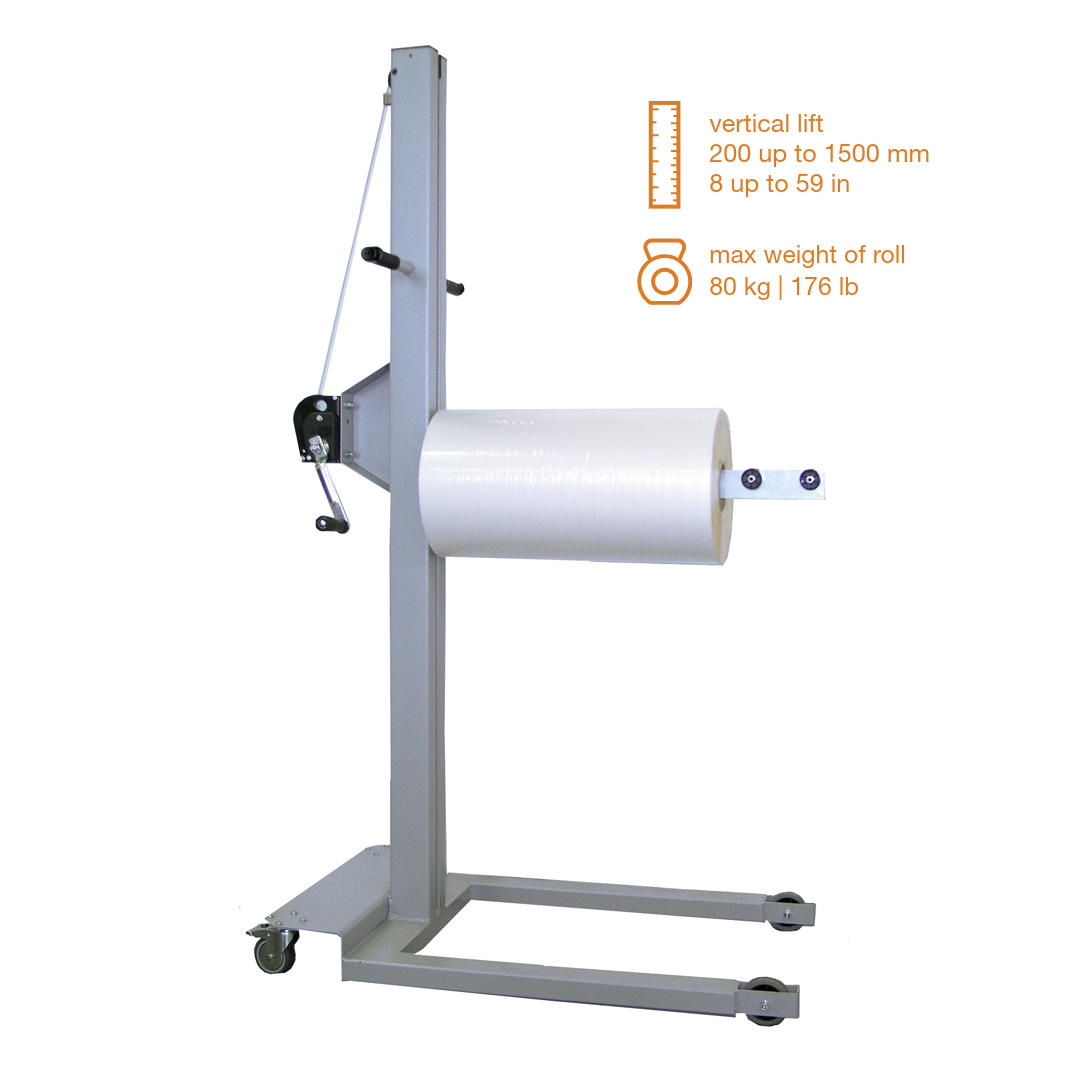

Komfi® Roll Lift

A MANEUVERABLE LIFT THAT FACILITATES LOADING AND UNLOADING FILM ROLLS

The Komfi® Roll Lift helps operators minimize heavy lifting, safely transport materials, and boost production efficiency during changeovers. Constructed of stainless steel, this durable unit provides excellent stability and mobility. Integrated rollers on the lift arm make loading and unloading laminate and film rolls almost effortless.

The Komfi Roll Lift has a comfort-grip handlebar, fixed front casters, and heavy-duty rear swiveling casters. Highly maneuverable, this lift has the ability to make sharp turns, and both rear casters have wheel locks that immobilize the unit during film changes. Heavy material rolls can be lifted smoothly with the user-friendly hand crank and pulley system. This unit supports a vertical lift from the floor up to 59 inches for the standard lift or 78.7 inches for the extended lift, and its sturdy, compact design enables a single operator to replace rolls quickly and safely position laminates or films.

STANDARD FEATURES

• Stainless steel construction
• Swivel rear casters can be locked
• Fixed front casters
• Push handlebar at comfortable height
• Hand crank with cable and pulley lifting system
• Narrow footprint: 21.7" wide or 29.5" wide
• Lifting capacity: 176 lbs. or 440 lbs.
