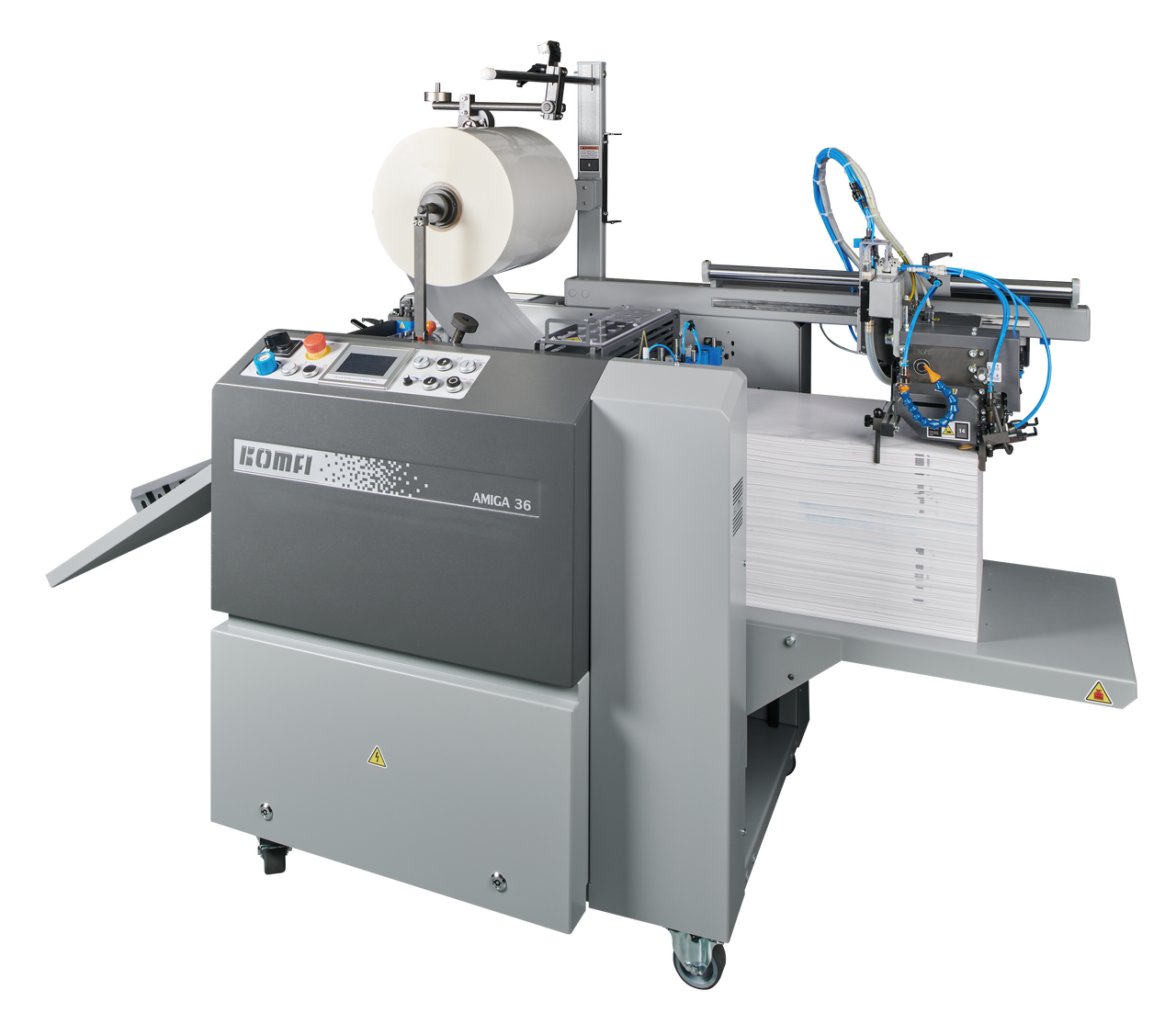

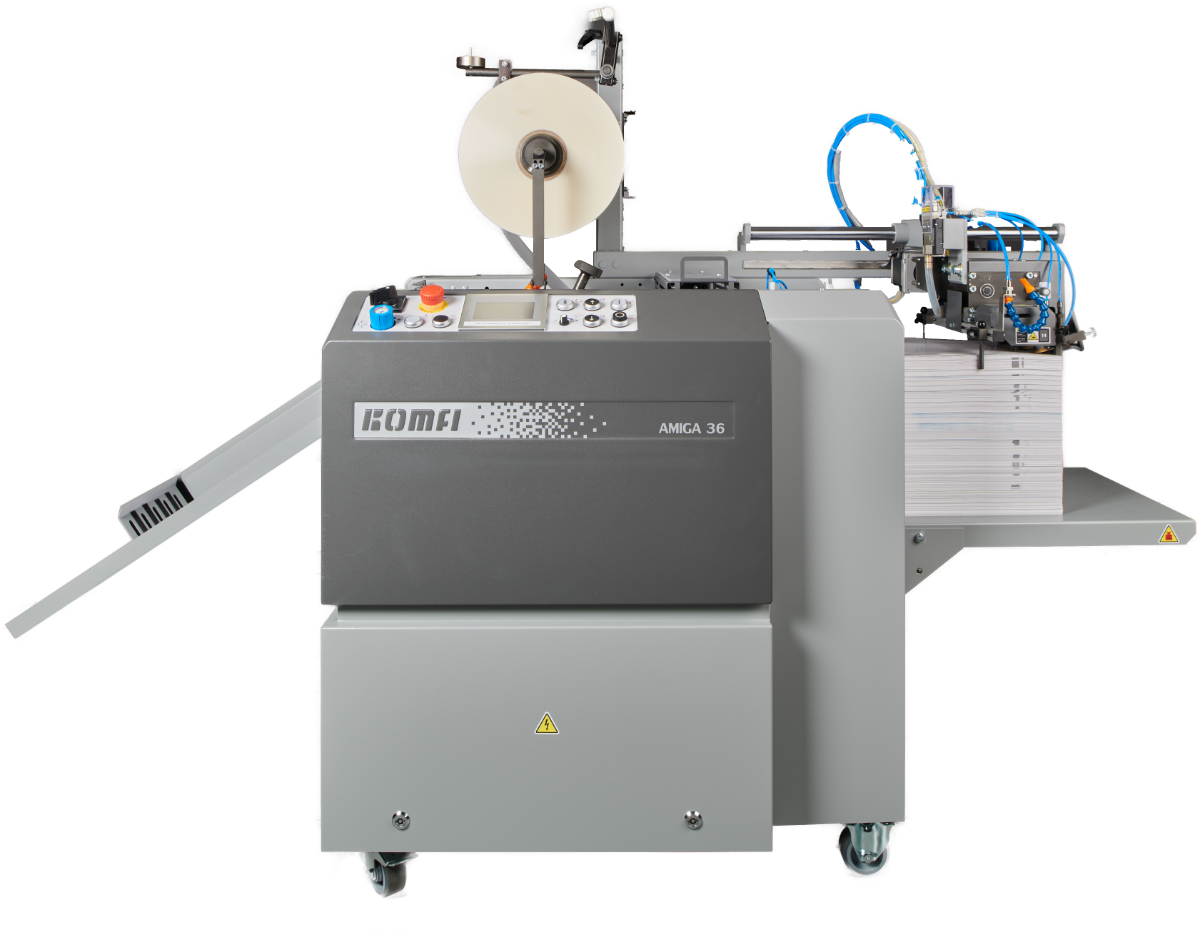

Komfi® Amiga 36 - Top Feeder

A TOP-FED PRODUCTION LAMINATOR FOR SINGLE-SIDED LAMINATION

The Komfi® Amiga 36 Top Feeder is a single-sided thermal laminator designed for production-volume digital and offset projects. This unit features burst separation and an automatic, specially designed Komfi top feed head that allows operators to place large stacks of sheets at once. Sheet-overlap control, nip pressure activation, and sheet separation are also automated. A de-curling bar ensures each laminated piece performs as intended. This unit accepts a maximum sheet size of 14" x 27".

The Amiga 36 Top Feeder supports efficient, user-friendly operation with its highly accessible control center, which features a range of programmable settings and preset job parameters for similar projects. Mis-feeding and temperature-drop detection ensures each run is completed smoothly and without error. When a run is stopped midway through, the unit preserves the position of sheets mid-feed by releasing suction only after the sheet is lowered. This keeps gaps from forming between sheets when the run begins once again. Able to detect how many sheets remain in the feeder, this unit adjusts run speed according to laminate roll volume.

Ideal for brochures, direct mail, and greeting cards, the Amiga 36 laminator can also be ordered with a variety of optional features, including an on-roll film perforator, an on-roll film slitter, and film loading equipment. A PTFE-coated pressure roller can also be added at request.

For short-run volumes, see the Komfi® Amiga 36 Bottom Feeder.

STANDARD FEATURES

• Single-sided lamination
• Digital and offset output
• Automatic Komfi top feed head
• Burst separation
• Best for BOPP thermal laminates
• Maximum sheet size: 14" x 27"
• Centralized control panel
• De-curling bar
• Spare parts kit

OPTIONAL FEATURES

• PTFE-coated pressure roller
• On-roll film perforator
• Antistatic options
• Film loading equipment
• On-roll film slitter
• OTF module for Sleeking®
